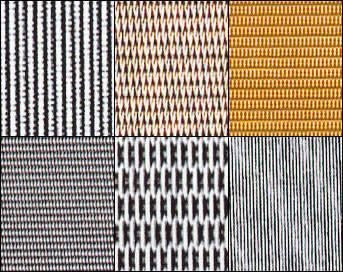

Dutch Wire Cloth

Dutch Woven Wire Cloth is our most important product. We have 88 sets JZ-1300 wire mesh weaving mechines, to produce Jin Bao brand Stainless Steel Wire Cloth (24/110mesh-325/2300mesh).

Materials: Materials of Dutch Woven Wire Cloth is divided into Type 302, Type 304, Type 304 L, Type 316 and Type 316 L. Stainless Steel Dutch Woven Wire Cloth offers good wear-resistance, heat-resistance, acid-resistance and corrosion resistance. Dutch Woven Wire Cloth in brass, nickel, steel or other metal materials also available at request.

Use: Stainless Steel Dutch Woven Wire Cloth is utilized as filter fittings for chemical industry, medicine, petroleum, telecom-communication, scientific research units and so on.

Weaving Patterns of Dutch Wire Cloth can be divided Dutch Plain Weaving, Dutch Twill Weaving or Dutch Reverse Weaving.

Dutch Twill Weave: Each weft wire passes alternately over two, and then under two successive warp wires and each warp wire passes alternately over two and under two successive weft wires. It is possible to be used to allow a heavier than standard wire diameter.

Dutch Reverse Weave: Dutch Reverse Weave is the same as Dutch weave except the warp and weft wires are reversed.

Dutch Wire Cloth Plain Woven
Gauge No.	Mesh/Inch(Warp x Weft)	Wire Diameter (Warp x Weft)	Reference Aperture (um)	Weight/sq (kg)
32#	8 x 62	0.63mm x 0.45mm	300	5.42
40#	10 x 79	0.50mm x 0.355mm	250	3.16
48#	12 x 64	0.58mm x 0.40mm	280	2.9
55#	14 x 88	0.40mm x 0.30mm	180	2.54
76#	19 x 140	0.315mm x 0.20mm	140	1.88
80#	20 x	0.35mm x 0.20mm	-	3.6
95#	24 x 300	0.355mm x 0.25mm	120	2.45
100#	25 x 140	0.28mm x 0.20mm	100	1.95
120#	30 x 150	0.25mm x 0.18mm	80	1.68
140#	35 x 175	0.224mm x 0.16mm	71	1.52
160#	40 x 200	0.20mm x 0.14mm	60	1.40
180#	45 x 250	0.16mm x 0.112mm	56	1.09
200#	50 x 250	0.14mm x 0.11mm	53	1.04
220#	55.5 x 280	0.14mm x 0.10mm	50	0.92
240#	65 x 330	0.11mm x 0.08mm	36	0.71
280#(1)	70 x 350	0.11mm x 0.08mm	35	0.72
280#(2)	70 x 385	0.11mm x 0.07mm	32	0.75
300#	78 x 700	0.11mm x 0.08mm	30	1.39
315#(1)	80 x 400	0.10mm x 0.065mm	40	0.62
315#(2)	80 x 600	0.10mm x 0.06mm	-	-
315#(3)	80 x 800	0.15mm x 0.04mm	-	-
Roll width: 1-1.6m

Dutch Wire Cloth Twill Woven
Gauge No.	Mesh/Inch(Warp x Weft)	Wire Diameter (Warp x Weft)	Reference Aperture (um)	Weight/sq (kg)
320#	81 x 780	0.10mm x 0.07mm	30	1.22
354#	90 x 550	0.12mm x 0.05	-	-
360#	91 x 787	0.10mm x 0.10	25	1.24
400#	101 x 900	0.10mm x 0.10	20	1.22
472#	120 x 400	0.10mm x 0.10	-	-
500#	127 x 1100	0.07mm x 0.07	17	0.81
630#	160 x 1500	0.063mm x 0.063	15	0.62
650#(1)	165 x 400	0.017mm x 0.017	-	-
650#(2)	165 x 600	0.017mm x 0.017	-	-
650#(3)	165 x 800	0.017mm x 0.017	25	-
650#(4)	165 x 1100	0.017mm x 0.017	-	-
650#(5)	165 x 1400	0.017mm x 0.017	16	0.76
685#	174 x `700	0.063mm x 0.063	13	0.61
787#(1)	200 x 600	0.071mm x 0.071	-	-
787#(2)	200 x 800	0.071mm x 0.071	-	-
787#(3)	200 x 1400	0.071mm x 0.071	12	0.8
795#	202 x 1760	0.05mm x 0.05	10	0.6
850#	216 x 1860	0.045mm x 0.045	9	-
1000#	254 x 2000	0.04mm x 0.04	8	0.5
1125#	285 x 2235	0.036mm x 0.036	7	-
1228#	312 x 2100	0.035mm x 0.035	-	-
1250#	318 x 2235	0.036mm x 0.036	-	-
1280#	325 x 2300	0.035mm x 0.035	5	0.45
1575#	400 x 33100	0.035mm x 0.035	3	-
Roll width: 1-1.6m
