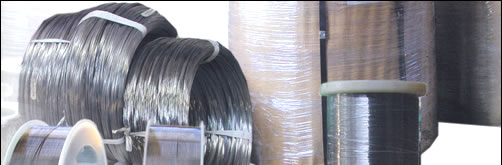

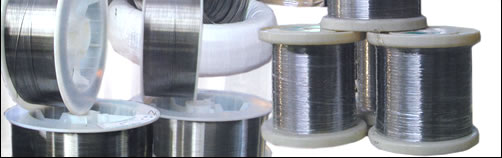

Anping Blue-Star Metal Wire Mesh Products Co., Ltd. has 26 sets of stainless steel wire drawing machines to produce quality stainless steel wire, wire diameter from 5mm to 0.025mm available. Besides using in wire mesh weaving by ourselves, we also sell stainless steel wire to local market and overseas market.

Stainless steel wire is used in a number of industries including wire-drawing, weaving of wire mesh, soft pipe, beam of cabinet, steel wire rope, filter material and equipment, spring, making of handicrafts, etc.

Sizes of Stainless Steel Wire
Wire Diameter(mm)	Tolerance(mm)	Max. Deviation Tolerance (mm)
0.020-0.049	+0.002/-0.001	0.001
0.050-0.074	0.002	0.002
0.075-0.089	0.002	0.002
0.090-0.109	+0.003/-0.002	0.002
0.110-0.169	0.003	0.003
0.170-0.184	0.004	0.004
0.185-0.199	0.004	0.004
0.200-0.299	0.005	0.005
0.300-0.310	0.006	0.006
0.320-0.499	0.006	0.006

Chemical Composition of Stainless Steel Wire
AISI Grade	Chemical Composition(%)
	C	Si	Mn	P	S	Ni	Cr	Mo
304	=<0.08	=<1.00	=<2.00	=<0.045	=<0.030	8.00~10.50	18.00~20.00	-
304H	>0.08	=<1.00	=<2.00	=<0.045	=<0.030	8.00~10.50	18.00~20.00	-
304L	=<0.030	=<1.00	=<2.00	=<0.045	=<0.030	9.00~13.50	18.00~20.00	-
316	=<0.045	=<1.00	=<2.00	=<0.045	=<0.030	10.00~14.00	10.00~18.00	2.00~3.00
316L	=<0.030	=<1.00	=<2.00	=<0.045	=<0.030	12.00~15.00	16.00~18.00	2.00~3.00
430	=<0.12	=<0.75	=<1.00	=<0.040	=<0.030	=<0.60	16.00~18.00	-
430A	=<0.06	=<0.50	=<0.50	=<0.030	=<0.50	=<0.25	14.00~17.00	-

Metal Wire:
Quality wire from Blue-Star for wire mesh weaving and for construction

Wire Mesh:
Woven wire mesh, welded wire mesh, expanded mesh in different metals

Wire Mesh Processed Products:

Blue Star can further process wire mesh according to application needs
